Tubular Batteries @ C10 Rating

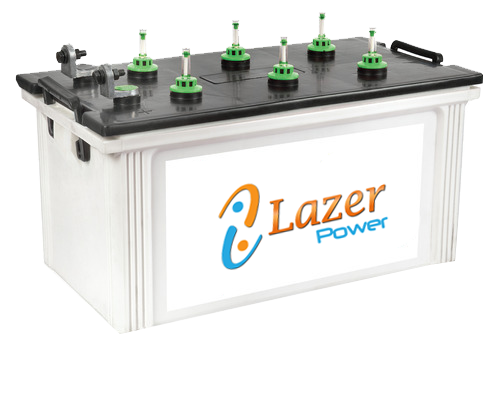

A solar battery receives energy from the sun through solar panels. It is used to charge the system exposure to sunlight. Solar batteries are the main device in solar system. This allows the solar system to deliver sun power to electric power. This is mostly used to store the power and supplies electrical power even when the sun is down. This helps to run solar system 24hrs a day through a solar charger. This is our 150Ah Tubular Battery.

Features
High Pressure die-cast positive plate is used to delay corrosion to extend life.
Low antimony selenium lead alloy is used to minimize water consumption
High porosity glass and fiber is used to avoid cell short circuit.
Heat sealed PPCP tower gives extra large acid volume.
Heavy duty L shape double hole terminal is used to avoid in-service expenditure.
Double nylon rope is used for safety handling.
PVC terminal shrouding cap is used for electrical safety.
Ceramic vent plug is used to arrest acid fumes and reduce topping up.
Water topping up frequency is done once in 5 months.
Its life expectancy is more than 3 yrs.
Factory charged and wet shipped is an assured performance.

New Batteries should be given a Full Charge before use.
Install batteries on an Insulated surface like wooden planks or Rubber sheet or Thermo Cole Sheet or in a painted and properly earthed MS Angle Rack.
Select the battery capacity Properly as per your Invertor and UPS design and back-up required.
Take care not to offer much load on battery terminals while tightening also avoid the shorting of terminals.
Keep the top surface of the battery clean, dry and tidy.
Use only proper current carrying cables and cable connectors and check for it's proper connection to prevent sparking and melting of terminals.
Applly petroleum jelly or Vaseline to terminals to prevent corrosion but Do Not Use Grease.
Ensure polarity of the battery that is connect positive cable to positive (red) terminal of battery and negative cable to negative (blue) terminal of battery.
Ensure that batteries are kept in well ventilated place with adequate shelter and check that battery is not exposed direct to sunlight.
Keep the vent plug tight and clean.
Top up the battery with DM Water after 6 months intervals.
Never Use Tap Water, Bore water even mineral water as it can reduce your battery life.
The Water used to replenish batteries should be distilled or de-mineralized (DM) Water. Particular Care should be taken to avoid mentallic Contamination (Iron).
Never Add Acid in the battery otherwise it will damage your battery.
Fully charged battery have the acid gravity in between 1245 to1250. If more then reduce it by adding little DM Water as required.
Excessive consumption of water is an indication of Overcharge it can kill the battery. Check up charger of your UPS or Invertor.
Keep away Flames cigarettes etc from the battery, as the gases evolved are Inflammable.
Avoid Mixed Battery state that is of different capacities, makes and ages.
Protect battery from Metallic Objects like spanner, watch, etc. coming in contact with battery terminals.
Battery contains lead which is Hazardous so return the old used up battery to the dealer or battery manufacturer.
Periodic Battery Testing is an important preventive maintenance procedure.
Always use a matched voltage charger and battery pack systems. An undersized charger will never get the job done, no matter how long you let it run. An oversized charge will cause excess gassing and heat; this situation could cause Explosions or other Damage.
The Battery storage area must be properly Ventilated.Battery emits gases like hydrogen and ozygen. Concentration of 4% hydrogen are explosive, and recommended maximum concentration of 2% are required for battery storage area.
