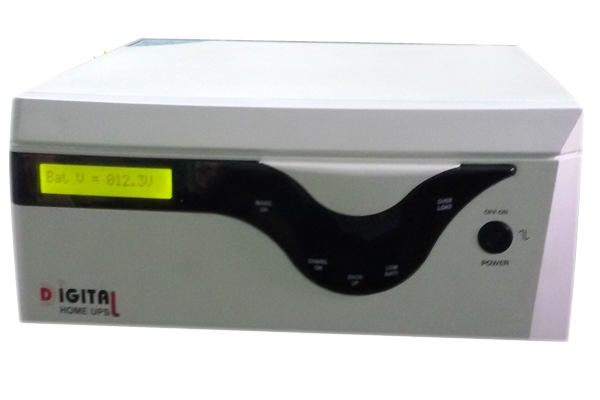

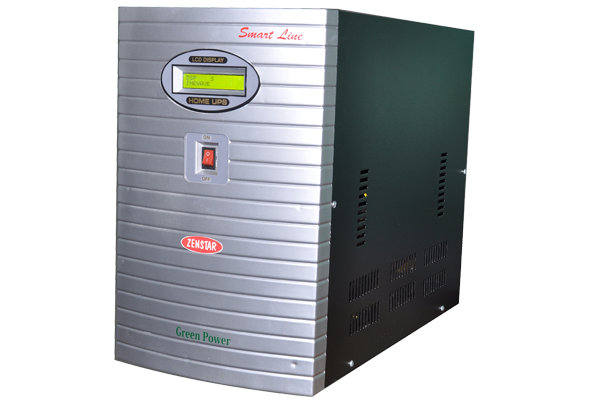

DSP Sine Wave UPS

Technical Specification
Technology : DSP Based PWM MOSFET / IGBT
Capacity : 600VA to 10 KVA
Input Voltage : 175V - 265V AC for computer
100V - 300V AC for lighting
Transfer time : < 3ms
Waveform : Pure Sine Wave
Frequency : 50Hz ± 0.5 HZ
Efficiency : 225V ± 1% (on Battery Mode)
Efficiency : >96%
Output Voltage : 225V ± 1% (on Bannery Mode)
Power factor : 0.8 lag
Charger : DSP Based PWM SMPS
Short Circuit Protection : >300% load (short circuit with Manual Reset Function)
Indications/LCD Display : Mains On, Charger On Inv On, Batt Low, Overload
Alarms : Battery Low, Over Load, Mains Failure, Short Circuit
Protection : Mains Hight and Low Voltage, Short Circuit, Batter deep discharge and over charge
Type of cooling : Forced Air Cooling
Noise Level : Less than 60db
Crest Factor : Upto 3:1
Withstanding capacity : 125% Up to 60 Seconds
Recharging time : 6 Hours - 8 Hours
Battery voltage range : 12V to 240 DC
